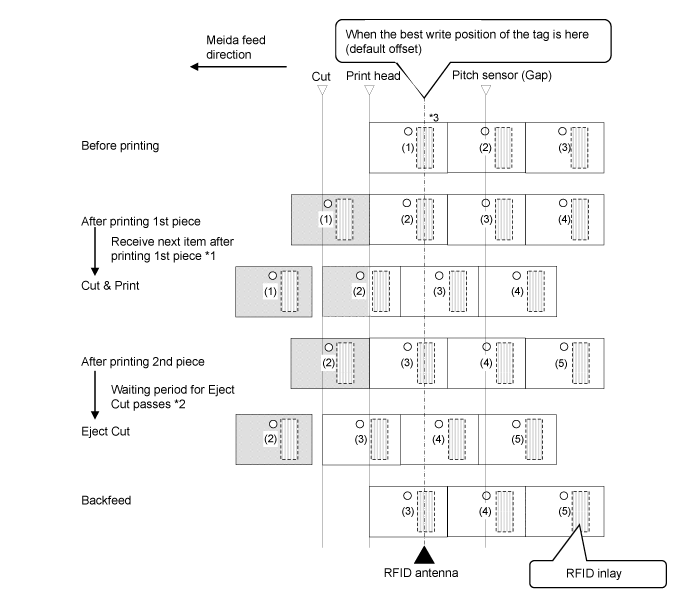

TOP > Adjusting the Product > Flow of Printing Operations > Operations for RFID Write (CL4NX Only) > RFID Write with Cut & Print Mode (CL4NX Only) RFID Write with Cut & Print Mode (CL4NX Only) When the cut & print mode is selected, RFID encoding is performed before printing while stopping at the print head position. RFID tag offset cannot be used in the cut & print mode. The setting value will be ignored even if tag offset is set. Also, the RFID tag error print in the cut & print mode is the same as the error print in the continuous or cutter mode. *1 After printing, if the next data is received, printing will be done and the media will be cut on the cut position. *2 After printing, if the next data is not received and the waiting period for Eject Cut has passed, Eject Cut will be performed. *3 The EPC code write <IP0> command writes the data at this inlay position. The RFID read [DC2]PJ, printing tag data <TU>, and EPC/TID return <RU> commands acquire the information at this inlay position. • The figure above shows the operation when the Gap sensor is used and the reference position is adjusted with <#> on side hole tags. Error Printing Sample RFID tag error print in the cut & print mode Be careful of white streaks. Back to top
