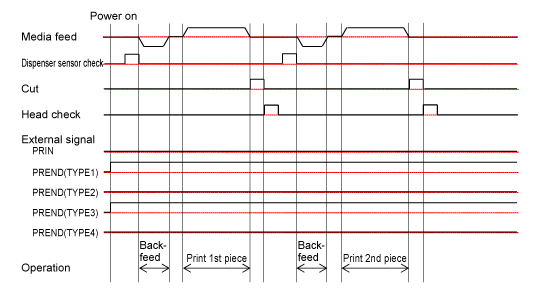

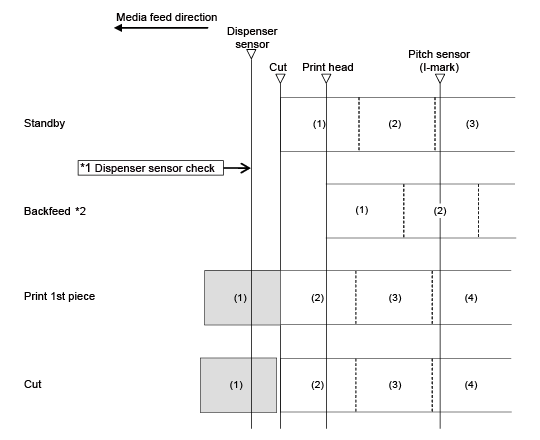

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Linerless Mode (CL4NX Only) > Linerless Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Enabled) (CL4NX Only) Linerless Mode, Backfeed Before Printing, and Without Pulse Input (Head Check Enabled) (CL4NX Only) Operation *1 The dispenser sensor confirms the dispensing condition and the product does not perform the next operation until the label is dispensed. *2 The backfeed speed becomes 2 inches/sec (50.8 mm/sec) immediately after powering on the product, immediately after backing from the sleep mode, or after 60 minutes or more from the last printing. • The figure above shows the reference position when the I-mark sensor is used. Timing Chart Back to top
