TOP > Various Settings of the Product > The Product's [Settings] Menu > [Tools] Menu > [HEX-Dump] > [Log Files] > [Copy]
[Copy]
Copy the log files of the product to the USB memory.
Available only if you have installed the USB memory.

•
Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.
The procedure to copy the log files is as follows:

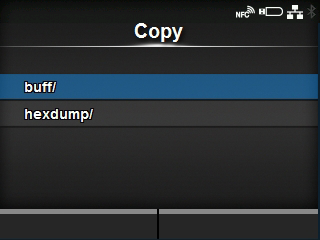

1.
Select the file type to copy and press the button.
◦
buff/
The buffer data saved when you perform the [Buffer Dump].
◦
hexdump/
The received data created through [Hex Dump Mode].

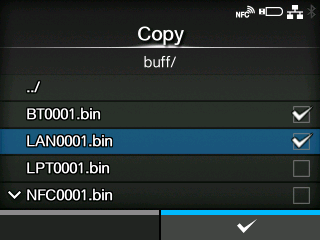

2.
Select the file to copy and press the button. A check mark appears on the right side of the file name.
3.
After you select the file, press the button to copy the selected file to the USB memory.

•
When [Hex Dump Mode] is set to [Enabled], it may take some time before the files appear.
