Loading the Media with the Optional Dispenser Unit and Liner Discharge Rewinder

View the video here (it has no audio).

•

For CL4NX

•

For CL6NX

• When opening or closing the dispenser unit, be careful not to pinch your fingers.

The below topic describes the procedure to dispense the label and rewind the liner in the product.

• The maximum diameter of the liner that can be rewound in the product is φ120 mm (4.72"). • The routing path of the media is shown in the below picture. Label Liner

　

View the video below for the procedure.

CL4NX

CL6NX

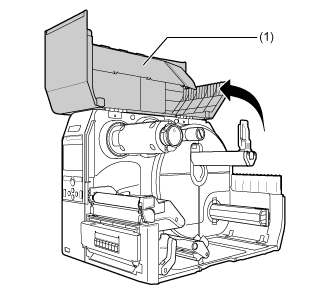

1.	Open the top cover (1).

• Open the top cover fully to prevent accidental drop of the cover.

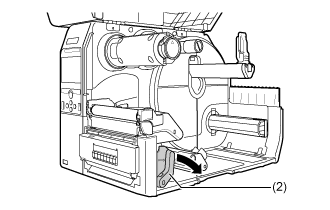

2.	Push the head lock lever (2) towards the rear.

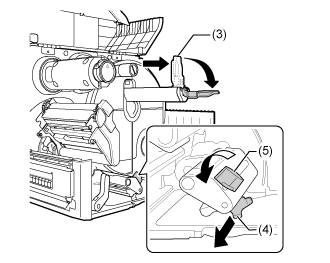

3.	Pull the media holder guide (3) and media guide (4) away from the product.

Turn the knob (5) counterclockwise to release the media guide.

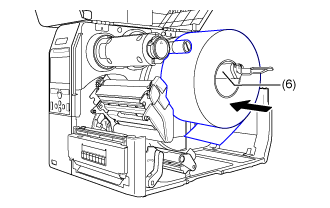

4.	Load the media in the media holder (6).

Make sure that the media roll is all the way in to inside of the product.

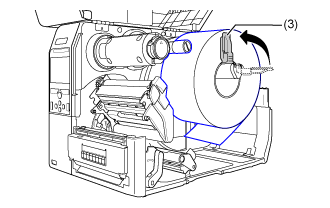

5.	Push the media holder guide (3) lightly against the media roll.

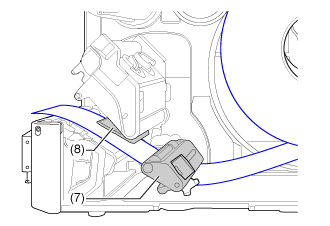

6.	Pass the media below the media damper (7) and the media sensor guide (8) while pushing the media to inside of the product.

Make sure that the end of the media extends out the front of the product.

7.	Open the dispenser unit.

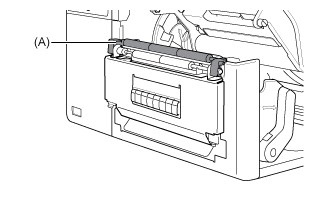

When using the dispenser unit with the part (A) as shown below

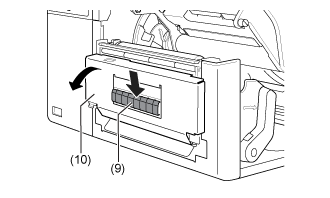

a.	Press the tab (9) at the front of the product.

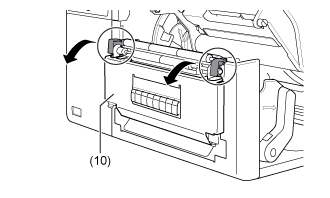

b.	Use both hands to hold the metal parts on the ends of the roller to pull the dispenser unit (10) open.

When using the dispenser unit without the part (A)

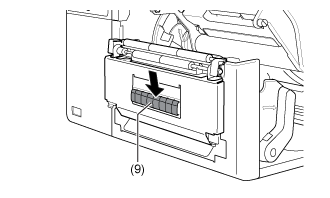

a.	Press the tab (9) at the front of the product to open the dispenser unit (10).

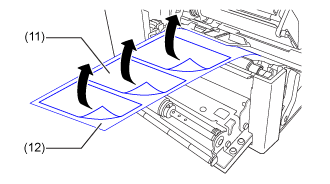

8.	Remove about 80 cm (31.5") of labels (11) from the liner (12).

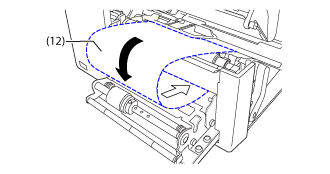

9.	Pass the liner (12) through the gap of the dispenser unit to the inside of the product.

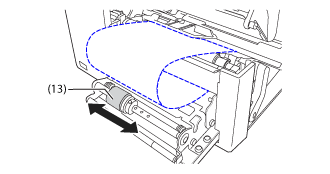

10.	Adjust the dispenser roller (13) to the center of the label.

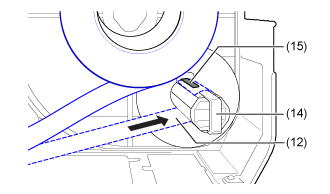

11.	Pass the liner (12) below the liner rewinder (14), and attach it with the clip (15).

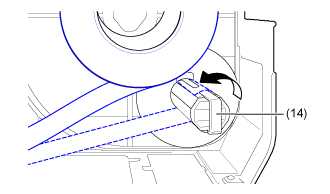

12.	Rotate the liner rewinder (14) counterclockwise by hand, to wind the liner.

13.	Close the print head.

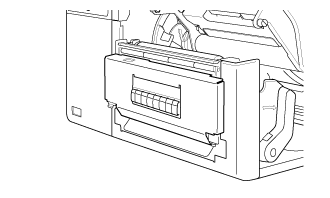

14.	Close the dispenser unit.

15.	Press the media guide lightly against the end of the media, and then turn the knob to lock the media guide.

16.	Close the top cover.

• When closing the top cover, be careful not to pinch your fingers.

17.	Press the button (FEED) in Offline mode to feed the media.

18.	Press the button (ONLINE) to change to Online mode.

• You need to load the ribbon when printing using thermal transfer.

• When not using the product for a long time, keep the dispenser unit open to protect the roller.

---
