Media Setting

Load the media. You can check the loading method of the media through the video.

1.	Press the button.

For the models other than the CL4NX linerless model, the selection screen of the video for playback appears. Proceed to step 2.

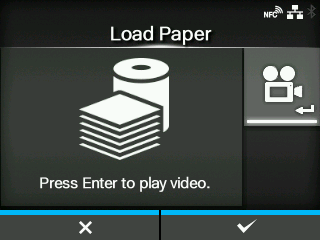

For the CL4NX linerless model, the video appears immediately after the button is pressed. Proceed to step 4.

2.	Select the video to playback using the / buttons.

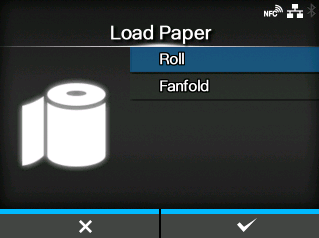

For Standard Model and Cutter Model

[Roll]

Shows the video on how to load the media roll.

[Fanfold]

Shows the video on how to load the fan-fold media.

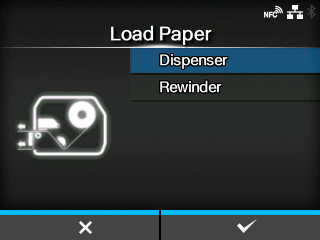

For Dispenser Model

[Dispenser]

Shows the video on how to eject the liner out of the product.

[Rewinder]

Shows the video on how to rewind the liner in the product.

3.	Press the button or button.

The video starts.

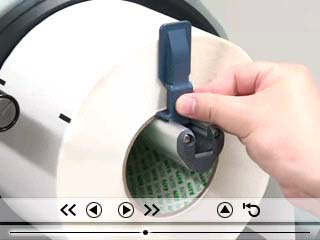

4.	Load the media while checking the video.

5.	After you complete the media setting, press the button to stop the video.

The display returns to the previous screen.

6.	Press the button to go to the next screen.

---

Related Topics

Loading the Media
