TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [External I/O] > [Signals] > [EXT 9PIN]

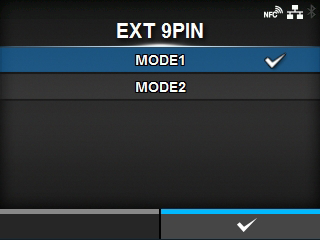

[EXT 9PIN]
Set the function of the EXT 9PIN output.
The options are as follows:
MODE1
The output signal becomes "Active" only when there is data in print buffer and product is ONLINE.
MODE2
The output signal becomes "Active" when product is ONLINE.
