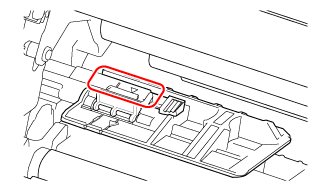

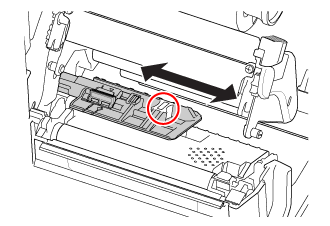

TOP > Loading Media and Ribbon > Loading Media > Adjusting the Position of the Media Sensor Adjusting the Position of the Media Sensor When you use nonstandard media (for example, media with printing on the underside, or media with a special shape), the media sensor cannot detect the I-mark or gap of the media correctly. In such a case, adjust the position of the media sensor to detect the I-mark or gap correctly. • Adjust the media sensor guide to the position where it can detect the I-mark or gap of the media. • The I-mark sensor (reflective type) is below the mark, and the Gap sensor (transmissive type) is below the mark. Back to top
mark, and the Gap sensor (transmissive type) is below the
mark.
