RFID Error and Reset Timing

Turns on the signal when an RFID system error occurs, or when the RFID tag error occurs (when reprint count reaches the specified number).

The signal will be turned off if the error is canceled.

Error Signal Output with One-shot Pulse

Turns on the signal when a read/write error occurs. The signal will be turned off after 100 to 500 ms.

RFID error signal turns on when the number of RFID reprints reaches the specified number. RFID error signal is always output at the level. However, if the RFID reprint count is set to "0",　RFID error signal does not change.

Timing Chart of Error Signal Output with One-shot Pulse

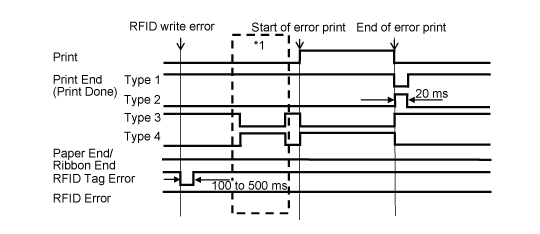

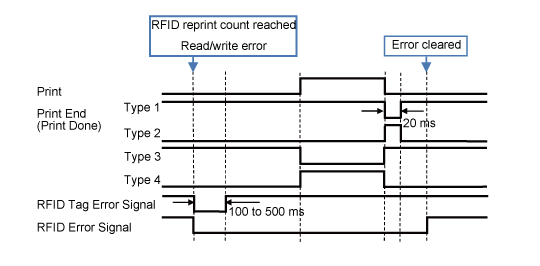

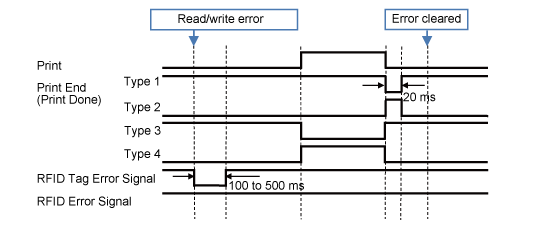

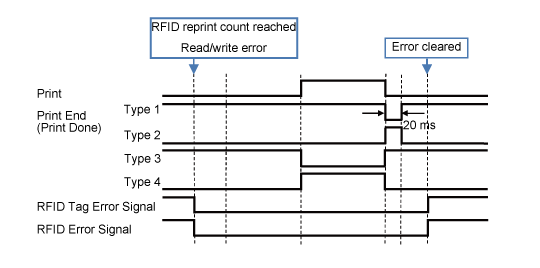

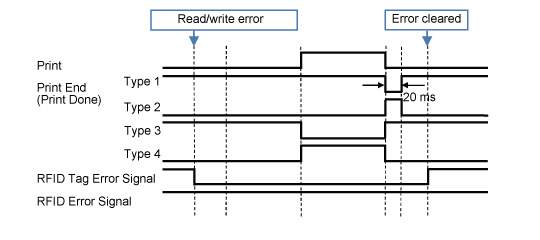

Item	RFID Reprint Twice - One-shot Pulse Output Waveform
Error
Reprint 1st
Reprint 2nd

*1 This is the operation when the minus tag offset is set. In other cases, this section will not operate.

Error Signal Output with Long Pulse

Turns on the signal when a read/write error occurs. The signal will be turned off if the error is cleared.

RFID error signal turns on when the number of RFID reprints reaches the specified number. RFID error signal is always output at the level. However, if the RFID reprint count is set to "0",　RFID error signal does not change.

Timing Chart of Error Signal Output with Long Pulse

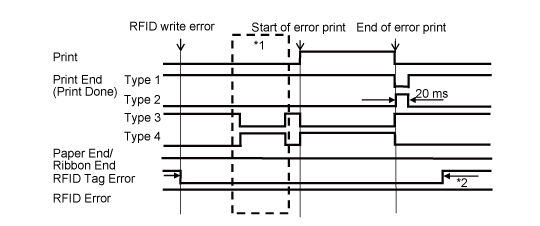

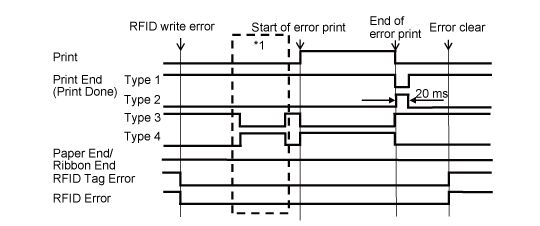

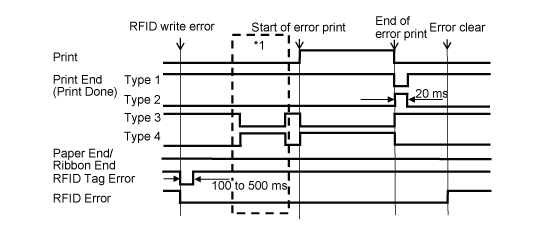

Item	RFID Reprint Twice - Level Output Waveform
Error
Reprint 1st
Reprint 2nd

*1 This is the operation when the minus tag offset is set. In other cases, this section will not operate.

*2 Continues until after the error printing operation is completed.
