Loading the Media with the Optional Cutter Unit

View the video here (it has no audio).

•	For CL4NX Media Roll

•	For CL4NX Fan-fold Media

•	For CL6NX Media Roll

•	For CL6NX Fan-fold Media

• Be careful not to touch the cutter blade.

　

View the video below for the procedure.

For CL4NX Media Roll

For CL4NX Fan-fold Media

For CL6NX Media Roll

For CL6NX Fan-fold Media

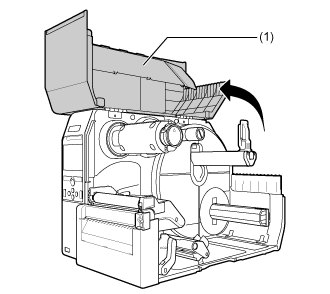

1.	Open the top cover (1).

• Open the top cover fully to prevent accidental drop of the cover.

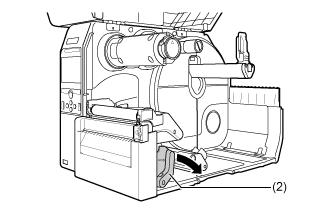

2.	Push the head lock lever (2) towards the rear.

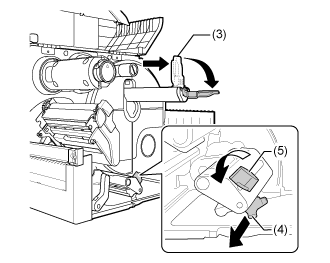

3.	Pull the media holder guide (3) and media guide (4) away from the product.

Turn the knob (5) counterclockwise to release the media guide.

4.	Load the media roll or the fan-fold media.

For Media Roll

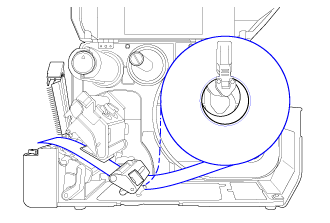

The routing path of the media is shown in the below picture.

Face-in media

Face-out media

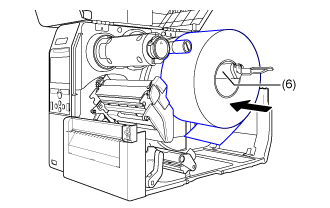

a.	Load the media in the media holder (6).

Make sure that the media roll is all the way in towards the inside of the product.

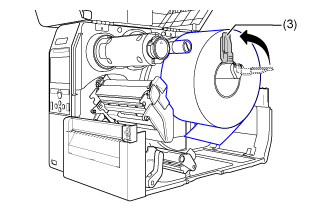

b.	Push the media holder guide (3) lightly against the media roll.

　

For Fan-fold Media

a.	Place the fan-fold media on a flat location, and then load the media from the rear of the product or from the media slot on the bottom of the product.

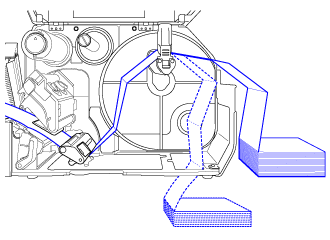

The routing path of the media is shown in the below picture.

Load the media from the rear of the product

Load the media from the bottom of the product.

• When loading the media, make sure that the print side faces up.

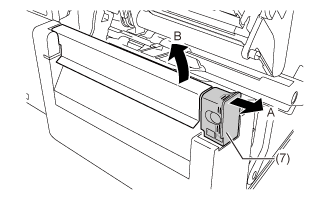

5.	Pull the tab (7) of the cutter unit in the direction A, and then open up the cutter-open lever to (B).

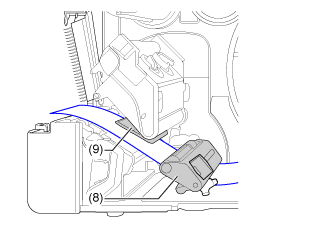

6.	Pass the media below the media damper (8) and media sensor guide (9) and through the cutter unit while pushing the media to inside of the product.

Make sure that the end of the media extends out the front of the product.

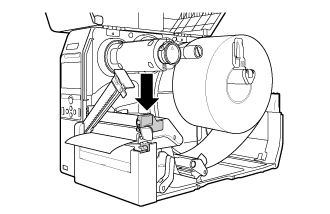

7.	Press the print head down until the head lock lever is locked.

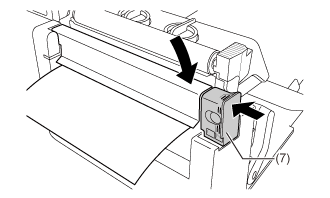

8.	Close the cutter and then push the tab (7) in the reverse direction to lock it.

9.	Press the media guide (4) lightly against the end of the media, and then turn the knob (5) to lock the media guide.

10.	Close the top cover.

• When closing the top cover, be careful not to pinch your fingers.

11.	Press the button (FEED) in Offline mode to feed the media.

12.	Press the button (ONLINE) to change to Online mode.

• You need to load the ribbon when printing using thermal transfer.

---

Related Topics

Loading Ribbon (Thermal Transfer Only)
