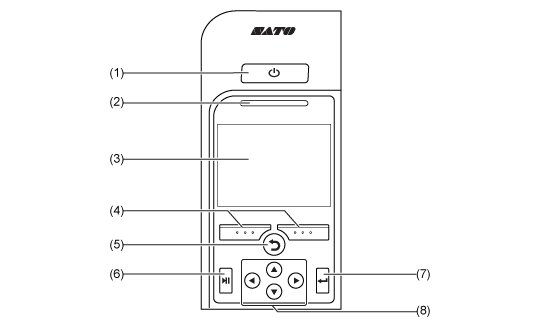

Parts Identification for the Operator Panel

(1) Power button

To power on the product, press the power button until the LED lights up in blue.

To power off the product, press the power button for more than two seconds.

(2) LED indicator

(3) Color LCD

(4) Soft buttons

The functions change depending on the screen. The functions of the buttons are indicated on the bottom of the screen.

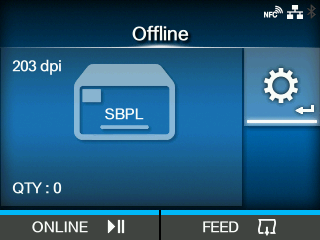

Example 1: In Offline mode

left soft button: ONLINE, right soft button: FEED

　

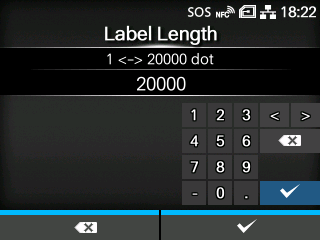

Example 2: The numerical value input screen of the Settings menu

left soft button: Delete one character, right soft button: Save

(5) Back button

Returns to the previous screen.

(6) Line button

Toggle between Online/Offline mode or playback/pause the video.

(7) Enter button

Confirm the selected item or setting value.

(8) /// Arrow buttons

Navigate the selection in the screen menu.
