Media Sensor Positions and Media Stop Positions

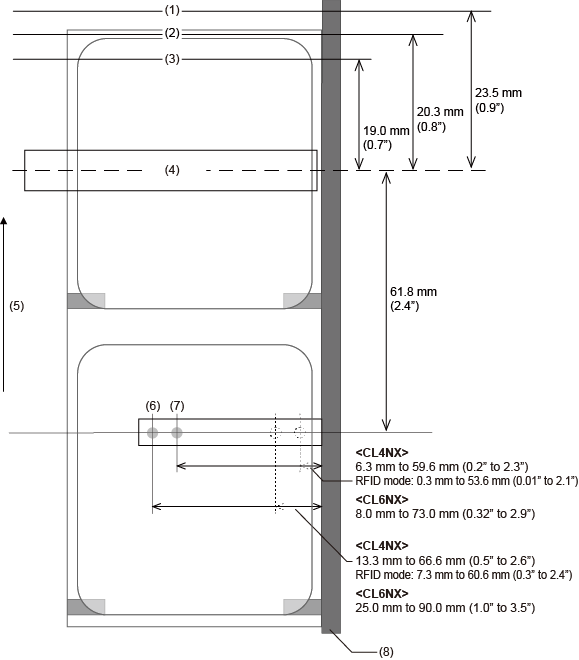

The positions of the media sensors and the media stop positions with the various print modes are as follows:

(1) Media stop position in dispenser mode

(2) Media stop position in cutter mode

(3) Media stop position in tear-off mode

(4) Print head

(5) Media feed direction

(6) Gap sensor

(7) I-mark sensor

(8) Frame

• If you use the notched media and when detecting the media position on the notched area, the dedicated parts are needed to be installed. By installing the dedicated parts, the moving range of the media sensor changes to inner side than the standard specification. If you adjust the media sensor position to the inner side, a false detection of the paper end may occur. In this case, change the setting of [Paper End] to [Using Gap] (Gap sensor). This dedicated parts is included in the RFID kit, so if you have installed the RFID kit to the product and the false detection of the paper end frequently occurs, change the setting of [Paper End] to [Using Gap] (Gap sensor) as well. For details, contact your SATO sales representative or reseller.

---

Related Topics

[Paper End]
