Adjusting the Print Position

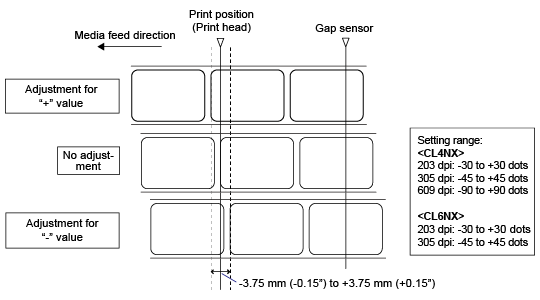

Set the [Pitch] in the [Printing] > [Advanced] > [Adjustments] menu to adjust the print position.

• The above reference position (print position) is the stop position when the media sensor type is set to Gap.

1.	When the product is in Online mode, press the button on the operator panel to change to Offline mode.

2.	Press the button to show the [Settings] menu.

3.	Select [Printing] using the / buttons, and then press the button.

4.	Select the [Advanced] > [Adjustments] > [Pitch] menu using the / buttons, and then press the button.

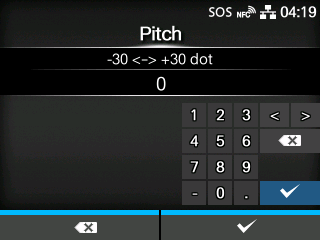

The [Pitch] screen appears.

5.	Change the setting value. Press the /// buttons to select a number and then press the button to enter the number to the text box.

The setting range is as follows:

Resolution	CL4NX	CL6NX
203 dpi (1 dot = 0.125 mm (0.0049"))	-30 to +30 dots	-30 to +30 dots
305 dpi (1 dot = 0.083 mm (0.0033"))	-45 to +45 dots	-45 to +45 dots
609 dpi (1 dot = 0.042 mm (0.0017"))	-90 to +90 dots	-

6.	Press the button to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the adjusted print position.
