[Logs]

Manage the barcode check log data saved in the product.

Available only if there is barcode check log data in the product.

Note that new log data overwrites on older log data when the log file reaches its maximum size (1 MB).

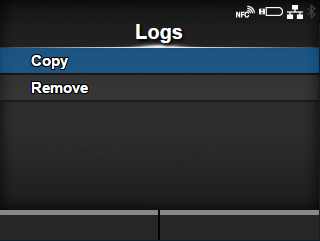

The setting items are as follows:

Copy

Copy the barcode check log data to the USB memory.

◦	Available only if you have installed the USB memory.

Remove

Remove the barcode check log data.

Format and Contents of the Barcode Check Log Data

The barcode check log data is created in the following format:

Format ID	Description
YYYY	Year of the date when the barcode check was performed1
MM	Month of the date when the barcode check was performed1
DD	Day of the date when the barcode check was performed1
hh	Hour of the time when the barcode check was performed1
mm	Minute of the time when the barcode check was performed1
ss	Second of the time when the barcode check was performed1
ZZZ	Time zone1
TTTTTTT	The total number of printed labels after the product is powered on. *When the total number of printed labels becomes greater than an 8-digit number, the output digit will increase.
IR	The number of read data received after reaching the position at which the check starts. *When the check result is "IGNORED", this shows "00".
SRSR	Size of read data (bytes)
drdr...	Read data
RRRRRRR	Check result
	SUCCESS	• In readable mode, this means everything is correct. • In comparison mode, this means that the read data and print data match.
	FAILURE	• In readable mode, this means that the barcode checker could not read the number of printed barcode data. • In comparison mode, this means that the read data and print data do not match.
	IGNORED	This means that the data is read during a period other than from the start to the end of checking, while the product is active.
IC	The amount of print data as a check target *If the check result is "IGNORED", this becomes "--".
SCSC	Size of print data (bytes) *If the check result is "IGNORED", this becomes "----".
dcdc...	Print data *If the check result is "IGNORED", nothing is output.

¹ If the optional RTC kit is not installed, the system time will be output.

---
