Adjusting the Print Speed

The adjustment of the print speed not only changes the speed of printing but also affects the print quality.

The setting range of the print speed varies depending on the following print resolution:

Resolution	CL4NX	CL6NX
203 dpi (8 dots/mm)	2 to 10 (inches/sec) (50.8 to 254 mm/sec)	2 to 10 (inches/sec) (50.8 to 254 mm/sec)
305 dpi (12 dots/mm)	2 to 8 (inches/sec) (50.8 to 203.2 mm/sec)	2 to 8 (inches/sec) (50.8 to 203.2 mm/sec)
609 dpi (24 dots/mm)	2 to 6 (inches/sec) (50.8 to 152.4 mm/sec)	-

• When the [Printing] > [Advanced] > [Prioritize] menu has been set to [Commands] and the print speed is specified by command, the data will be printed with the print speed specified by the command. • While the print job is paused, the [Adjustments] menu will appear instead of the [Settings] menu and you can adjust the print speed. • If the optional linerless cutter kit is installed to CL4NX, the setting range is 2 to 6 (inches/sec) (50.8 to 152.4 mm/sec) regardless of the printing resolution.

1.	When the product is in Online mode, press the button to change to Offline mode.

2.	Press the button to show the [Settings] menu.

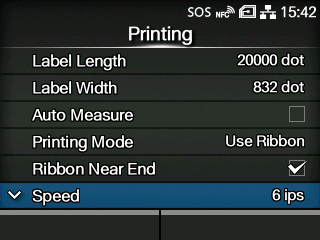

3.	Press the / buttons to select [Printing], and then press the button.

4.	Press the / buttons to select [Speed], and then press the button.

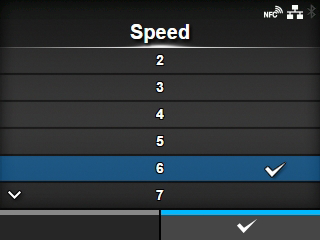

The [Speed] screen appears.

5.	Press the / buttons to select a value.

6.	Press the button or button to save the setting value.

7.	Press the button to change to Offline mode.

8.	Press the button again to change to Online mode.

You can print to check the print quality.
