TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [Network] > [Settings] > [LAN] > [Proxy]

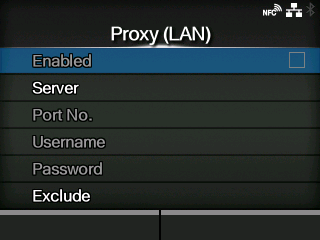

[Proxy]
Set the proxy for the LAN.
The setting items are as follows:
Enabled
Enable or disable use of proxy.
If you have set items in the [Server] and [Exclude] menu, you can change this item.
Server
Set the proxy server address.
Port No.
Set the port number to allow communication.
If you have set the address of the proxy server in the [Server] menu, select this to set the port number.
Username
Set the username if you need a username to connect to the proxy server.
If you have set the address of the proxy server in the [Server] menu, select this to set the username.
Password
Set the password if you need a password to connect to the proxy server.
If you have set the address of the proxy server in the [Server] menu, select this to set the password.
Exclude
Exclude the proxy from usage.
