TOP > Various Settings of the Product > The Product's [Settings] Menu > [Interface] Menu > [External I/O] > [Signals] > [Inputs]

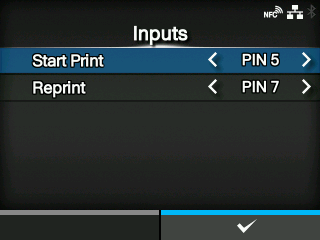

[Inputs]
Assign the pin No. to the input signals Print Start and Reprint.
Press the / buttons to highlight the item that you want to change, and press the / buttons to change the pin No.
Press the button to save the settings and return to the [Signals] menu.
The setting items are as follows:
Start Print
Assign the pin No. for the Print Start signal input.
The options are as follows:
[PIN 5]
Assign Pin 5 to the Print Start signal.
[PIN 7]
Assign Pin 7 to the Print Start signal.
Reprint
Assign the pin No. for the Reprint signal input.
The options are as follows:
[PIN 5]
Assign Pin 5 to the Reprint signal.
[PIN 7]
Assign Pin 7 to the Reprint signal.

•
You cannot set any inputs using the same pin number. If you attempt to set the same number, the settings will be shown in red and you cannot save the settings.
