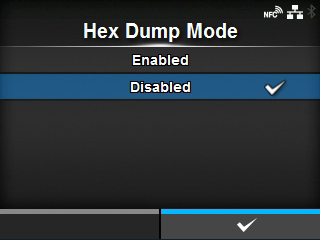

[Hex Dump Mode]
Enable or disable the Hex Dump mode.
If you set [Hex Dump Mode] to [Enabled], the product prints the received data and at the same time creates a file of the received data inside "hexdump/".
When you return the setting to [Disabled], you can check the file on the screen.

•
If you set [Hex Dump Mode] to [Enabled], the icon on the Online/Offline screen changes.
Hex Dump Mode: Disabled
Hex Dump Mode: Enabled
•
You can save a maximum of 10 received data files for each type of interface. Depending on the file size, the number of files you can save will be less than 10.
•
The details of the files created in "hexdump/" in the product are as follows:
BT00xx.bin
Received data through Bluetooth.
LAN00xx.bin
Received data through LAN.
LPT00xx.bin
Received data through IEEE1284.
NFC00xx.bin
Received data through NFC.
PIPE00xx.bin
Received data through pipe.
SCI00xx.bin
Received data through RS-232C.
USB00xx.bin
Received data through USB.
WIFI00xx.bin
Received data through wireless LAN.
