TOP > Basic Information > Using the Operator Panel > Settings Mode > Setting Value Input or Selection

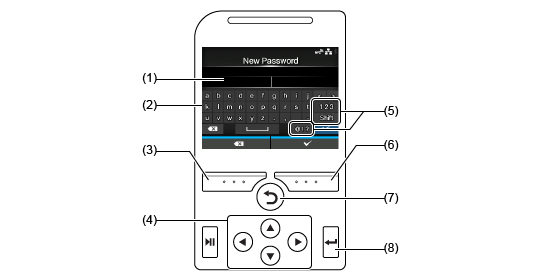

(4) Select the character for input using the arrow buttons. The selected character will be highlighted in the selection area.
(5) Change the input mode.
(6) Save the character you enter in the text box and return to the item list.

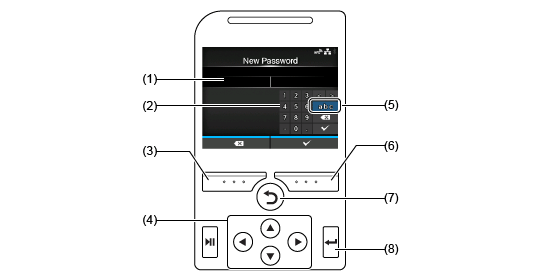

(4) Select the number for input using the arrow buttons. The selected number will be highlighted in the selection area.
(5) Change the input mode.
(6) Save the number you enter in the text box and return to the item list.

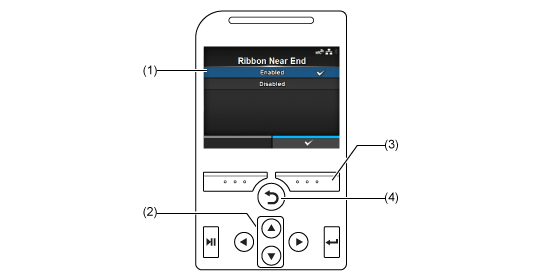

(2) Select an item using the / buttons. The selected item will be highlighted in the selection area.
(3) Save the selection from the list and return to the item list.

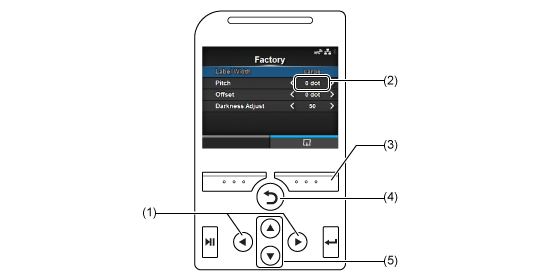

(1) Change the value in the selection box using the / buttons.
(2) Selection box
(3) Perform the function as shown on the screen.
(5) Select an item using the / buttons. The selected item will be highlighted in the selection area.

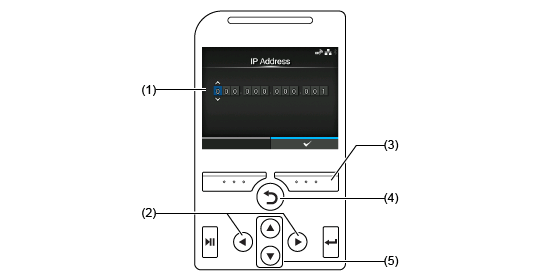

(2) Select the digit for input using the / buttons.
(3) Save the IP address you enter in the text box and return to the item list.
