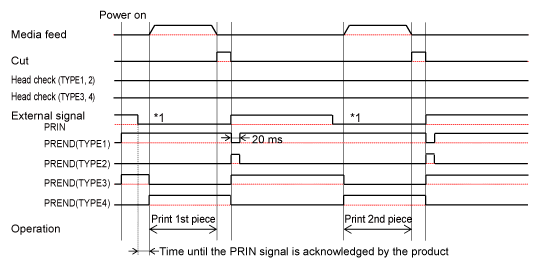

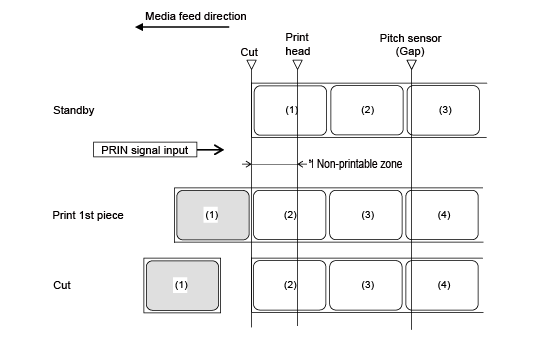

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Cutter Mode > Cutter Mode, No Backfeed, and with Pulse Input (Head Check Disabled) Cutter Mode, No Backfeed, and with Pulse Input (Head Check Disabled) Operation *1 Because backfeeding is not done, the media in this area is not printable. • The figure above shows the reference position when the Gap sensor is used. Timing Chart *1 Keep the PRIN (print start) signal to "Low" until the PREND (print end) signal is outputted. Back to top
