Loading the Fan-fold Media

View the video here (it has no audio).

• The print head and its surroundings are hot after printing. Be careful not to get burned. • Touching the edge of the print head with your bare hand could cause injury.

• Fan-fold media is not available in dispenser mode since the perforated line affects the dispenser function.

　

View the video below for the procedure.

1.	Press the cover open latch (1) to open the top cover (2).

2.	Open the media loading port (3) on the back of the product.

3.	Insert the fan-fold media from the media loading port.

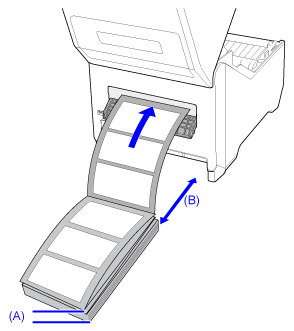

(A) Media height (from desk): within 100 mm (3.94")

(B) Distance between the back side of the product and the media: The size of 1 label, or more/the size of 2 RFID tags, or more

• When loading the media, make sure that the label side faces up. • The height may be limited depending on where media is placed. • When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation.

4.	Pull out the fan-fold media inserted from the back of the product.

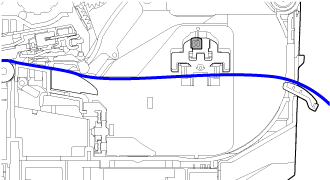

For normal media, pass the media under the protrusion on the inside of the media guide.

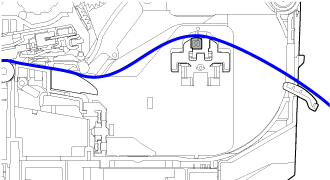

For RFID tags, pass the media over the protrusion on the inside of the media guide.

5.	While pulling the slide lever (4), move the right side media guide (5) to adjust the width of the media guide to match the width of the media.

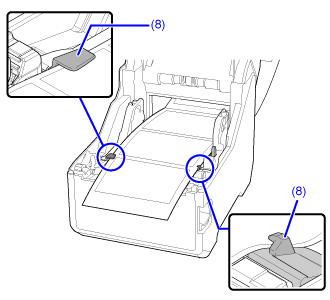

6.	Pull the media out under the left and right tabs (8).

7.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

• When the Label Waste Prevention function is enabled, an error occurs if the leading edge of the media extends too far from the media discharge outlet. Align the leading edge of the media with the media discharge outlet.

8.	Align the media to the print start position, and switch to Online mode.

If the icon appears on the screen, the Label Waste Prevention function is enabled. Tap [GO ONLINE] to have the media position adjusted automatically when switching to Online mode.

If the icon does not appear on the screen, the Label Waste Prevention function is disabled. Tap [FEED] to feed media, and then tap [GO ONLINE].

---

Related Topics

About the Label Waste Prevention Function
