Cleaning the Inside of the Product (When Optional Linerless Cutter Unit Is Installed)

View the video here (it has no audio).

This topic explains how to clean the inside of the product when the optional linerless cutter unit is installed.

• Never use organic solvents, such as thinner and benzine to clean the product.

　

View the video below for the procedure.

1.	Make sure that the product is powered off, and disconnect the power cord from the AC outlet.

2.	Press the cover open latch (1) to open the top cover (2).

3.	Remove the media and ribbon if they are already loaded.

4.	Clean the sensor (3) by using an air duster.

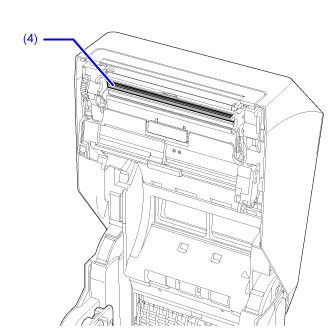

5.	Use a cotton swab or cotton cloth dampened with cleaning liquid to wipe the print head (4).

• The print head and its surroundings are hot after printing. Wait until the product cools down. • Touching the edge of the print head with your bare hand could cause injury.

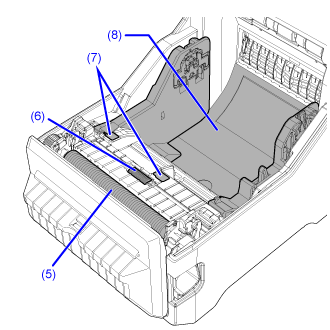

6.	Use a cotton swab or cotton cloth dampened with cleaning liquid to wipe the platen roller (5), the roller (6), the two sensors (7), and the media holder (8).

7.	Load the media and ribbon back if you remove them in step 3.

8.	Close the top cover.

Push both ends of the top cover, and close it firmly until it clicks.

• When closing the top cover, be careful not to pinch your fingers.

---
