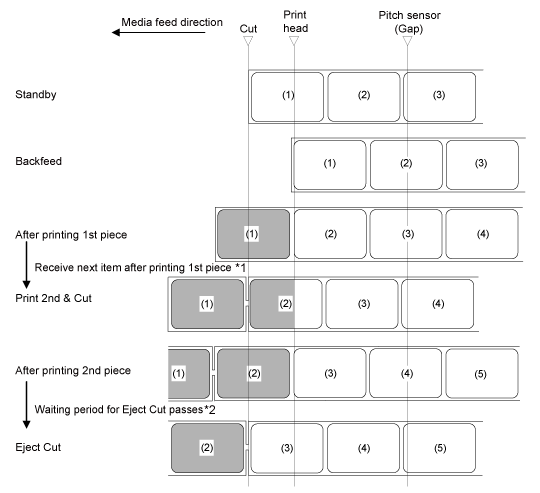

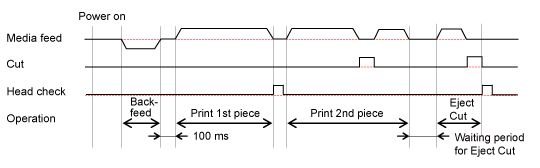

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Partial Cutter Mode > Partial Cutter Mode and Backfeed Before Printing (Head Check Enabled) Partial Cutter Mode and Backfeed Before Printing (Head Check Enabled) Operation *1 After printing, if the next data is received, printing will be done and the media will be cut on the cut position. *2 After printing, if the next data is not received and the waiting period for Eject Cut has passed, Eject Cut will be performed. • The figure above shows the reference position when the Gap sensor is used. Timing Chart Back to top
