Media Sensor Positions and Media Stop Positions

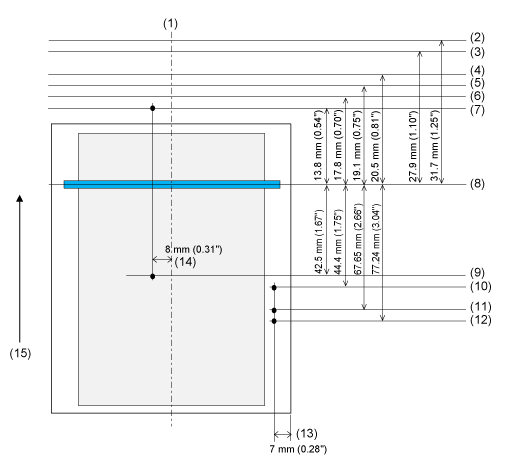

The positions of the media sensors and the media stop positions with the various print modes are as follows:

(1) Center position

(2) Linerless tear-off position

(3) Cutter tear-off position

(4) Cutter/linerless cutter position

(5) Dispensing stop position

(6) Tear-off position

(7) Label top sensor position

(8) Print head position

(9) Gap sensor position

(10) I-mark sensor position

(11) I-mark sensor position (RFID models)

(12) Gap sensor position (RFID models)

(13) I-mark sensor position (from edge of label)

(14) Gap sensor/label top sensor position (from center position)

(15) Feed direction
