Parts Identification

Front View

(1) LED indicator

(2) NFC antenna location

(3) LCD/Touch panel

(4) Media discharge outlet

(5) Cover open latch

(6) (Power/Home) button

To power on the product, press the (Power/Home) button until the LED lights blue.

While the product is powered on, press the (Power/Home) button to switch to the Home screen. (The Home screen does not appear while print jobs remain in the product.)

To power off the product, press the (Power/Home) button for more than 2 seconds, and then follow the on-screen instructions.

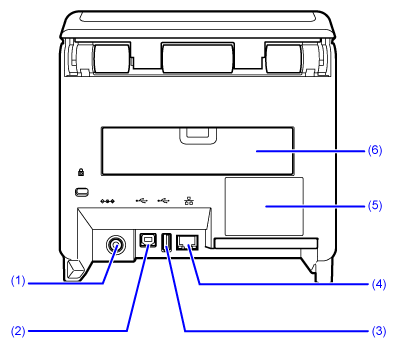

Rear View

(1) DC input connector

Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240 V, 50 to 60 Hz.

(2) USB connector (Type B)

To connect the product to the computer using the USB interface.

(3) USB connector (Type A)

You can use USB memory to get the product log data and setting information, and to install certificates.

Also, other devices like a barcode scanner or keyboard can be connected.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

(4) LAN connector

Use to connect the product to a network using the LAN interface.

(5) Sticker

The product information, such as model name and serial number, is listed.

The 8-digit alphanumeric characters to the right of "S/N" are the serial number.

(6) Media loading port (for fan-fold media)

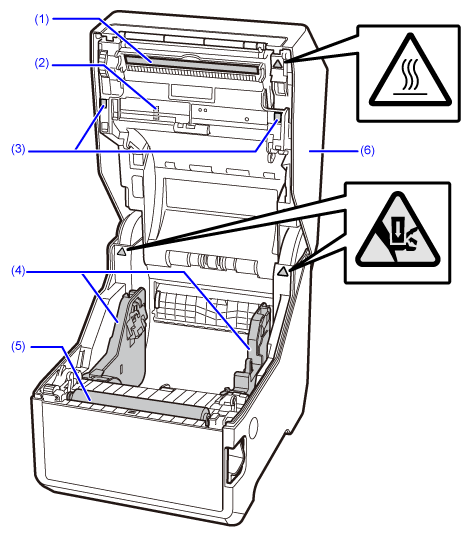

Internal View

(1) Print head (Consumables)

Creates an image on the media. Clean the print head regularly.

(2) USB connector (Type A)

You can use USB memory to automatically back up setting information by using the auto-clone function.

The connector is on the underside of the top cover. Pull out the parts (3), on which are engraved, inside the top cover, remove the cover that is held by screws, and then insert the USB memory.

• Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory.

• The size of the USB memory that can be connected inside the product is as follows: ◦ Length: under 68 mm (2.68") (excludes the metal part of the connector) ◦ Width: under 27.6 mm (1.09") ◦ Thickness: under 8.6 mm (0.34")

(3) Engraved

Indicated by the (ribbon cover open) marks on the combined direct thermal/thermal transfer model.

(4) Media guide

(5) Platen roller (Consumables)

(6) Top cover

---
