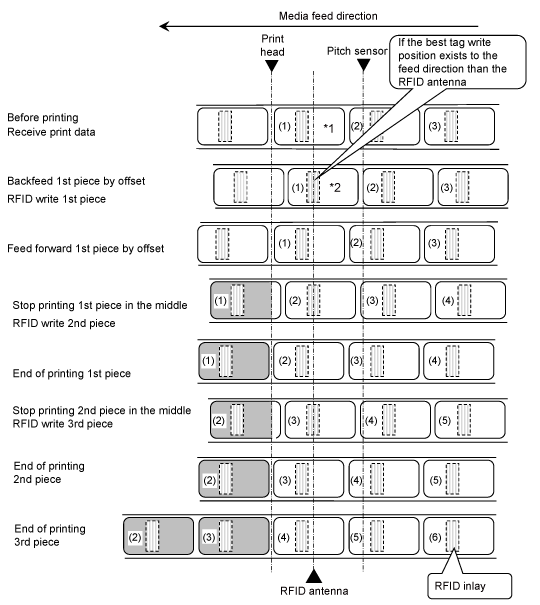

RFID Write with Continuous Mode (Tag Offset < 0, Normal Action)

When [Normal Action] is selected in [Interface] > [RFID] > [Tag Offset] > [Encoding Action], this operation will be performed. Also, when multiple RFID write data are received, this operation will be performed. If the RFID write data is one item, the product operates in continuous mode (Tag Offset < 0, Feed Action).

*1 Because the EPC code read and RFID read [DC2]PJ commands acquire the information at this inlay position, do not use them. The Label Waste Prevention function is not available because the first tag will be wasted.

*2 The EPC code write <IP0> command and RFID write <RK> command write the data at this inlay position. The EPC code read, UID/EPC/IDm print <TU>, and UID/EPC/IDm return <RU> commands acquire the information at this inlay position.

• When [Encoding Action] is set to [Normal Action] and the value in [Tag Offset] is -1 mm (-0.04") or less, the length of the RFID tag needs to be set accurately. Measure and set the length of the RFID tag automatically in [Label Measure Start] or set it accurately in [Pitch Size].
