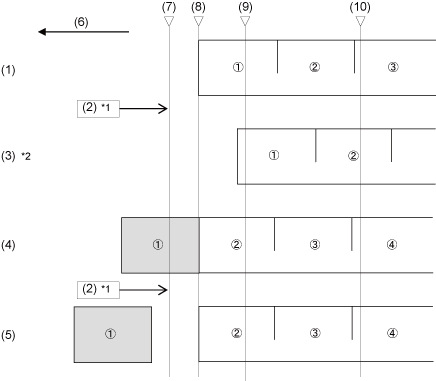

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Linerless Mode > Operation 16: Linerless Mode, Backfeed Before Printing, and with Media Sensor Enabled (Head Check Enable) (PW208NX only) Operation 16: Linerless Mode, Backfeed Before Printing, and with Media Sensor Enabled (Head Check Enable) (PW208NX only) Operation (1) Standby (2) Linerless sensor check (3) Backfeed (4) Print first page (5) Manual label cut (6) Feed direction (7) Linerless sensor (8) Manual cut (9) Print head (10) Pitch sensor (I-mark) *1 The linerless sensor checks the presence of labels; and the product does not perform the next operation until manual cutting is performed. *2 Backfeed until 4 mm is left from the tip of the label. • The figure above shows the reference position when the I-mark sensor is used. Timing chart (1) Feed media (2) Linerless sensor check (3) Battery check (4) Head check (5) Operation (6) Power on (7) Label dispenser (8) Backfeed (9) Print first page Back to top
