Setting Screen (Numeric Input)

Enter the desired value based on the button operation and screen transition diagram in the table below.

Button Name/Button Operation	Arrow types	Screen operation
(Print/Select) button		Sign: Toggle between “+” and “-”. Number: Changes the value by +1 or by one step. 1
(Feed/Enter) button		Other than the least significant digit: Confirm the sign and number, and move to one lower digit. Least significant digit: Confirm the input value and move to the next submenu. 2
+		Sign or most significant digit: Move to the least significant digit. Sign or other than the most significant digit: Move to the sign or one higher digit.
(Power) button		Discard the input value and return to the submenu.

¹The “!” symbol blinks when the setting value is out of range.

²If it is the last submenu of the level, you will be taken back to the submenu of the item you configured. While the “!” symbol is flashing, you will be taken back to the sign or the most significant digit.

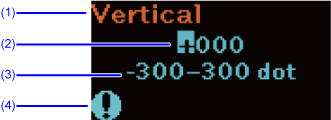

Setting screen layout

(1) Currently selected item

The currently active submenu is displayed.

(2) Input value

(3) Setting range

(4) ! symbol

The symbol blinks when the setting value is out of range.

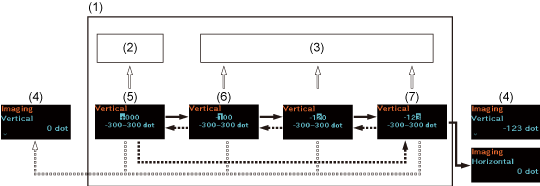

Screen transition diagram

(1) Setting screen

(2) Toggle between “+” and “-”.

(3) Changes the value by +1 or by 1 step. Returns to the minimum value once the maximum value is reached.

(4) Submenu

(5) Sign

(6) Most significant digit

(7) Least significant digit
