Operation 4: Continuous Mode with Media Sensor Disabled (Head Check Enabled)

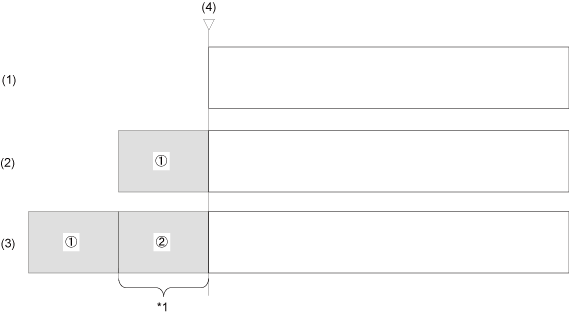

Operation

(1) Standby

(2) Print first page

(3) Print second page

(4) Head

*1 The product will feed the actual vertical print size of media. However, if you specify the End Position (<EP>) command, the product will feed the specified vertical size of media.

• The spaces between each layout varies depending on the print speed. In the figure above, as you set the print speed faster, the space between the first and second print becomes wider.

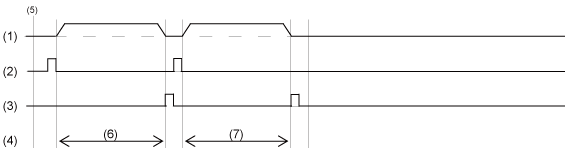

Timing Chart

(1) Feed media

(2) Battery check

(3) Head check

(4) Operation

(5) Power on

(6) Print first page

(7) Print second page
