[Tag Offset]

Set the offset value and the writing operation for when data is written to an inlay.

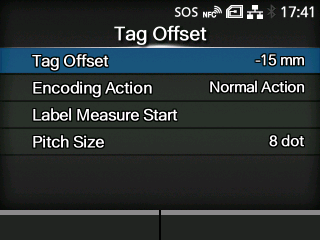

The setting items are as follows:

Tag Offset

Set the position at which to start writing data to the inlay.

Encoding Action

Set the product's operations when writing data to an inlay in the position specified in [Tag Offset].

◦	Appears when [Tag Offset] is set to something other than 0 mm (0").

Label Measure Start

The product automatically measures and sets the length of the RFID tag.

Pitch Size

Set the length of the RFID tag.

• When [Encoding Action] is set to [Normal Action] and the value in [Tag Offset] is -1 mm (-0.04") or less, the length of the RFID tag needs to be set accurately. Measure and set the length of the RFID tag automatically in [Label Measure Start] or set it accurately in [Pitch Size]. • (Supported by build version 1.15.6 or later firmware) When [Encoding Action] is set to [Normal Action] and [Tag Offset] is set to a minus value, printing an RFID tag when the length set in [Pitch Size] and the length of the RFID tag in use are different by 1.5 mm (0.06") or more will cause an RFID label pitch size error and printing will be stopped. Set the length of the RFID tag accurately in [Pitch Size]. When an error occurs even though the length of the RFID tag was set accurately in [Pitch Size], use [Label Measure Start] to automatically measure and set the length.

---
