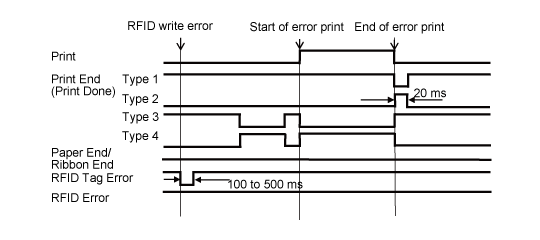

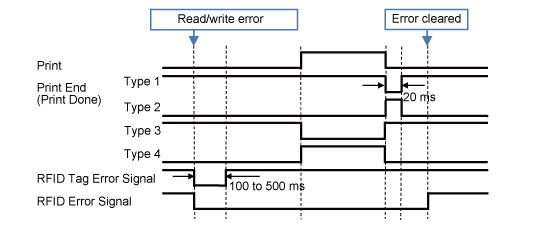

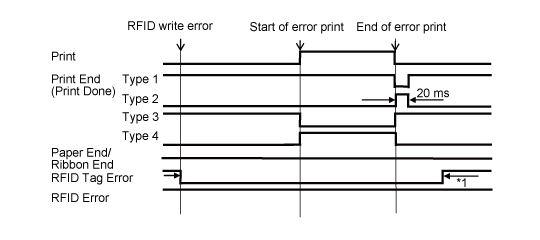

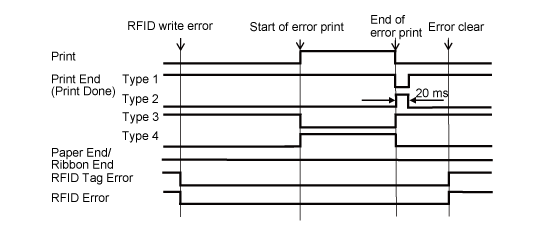

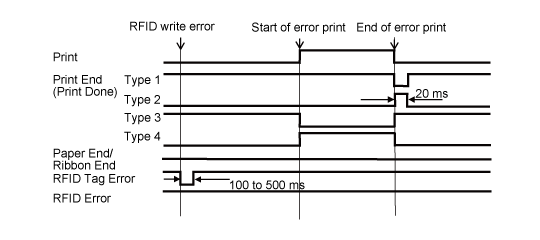

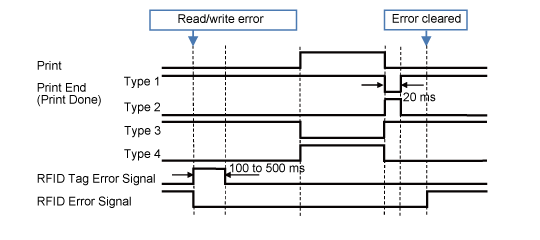

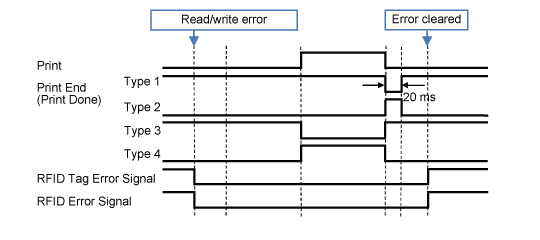

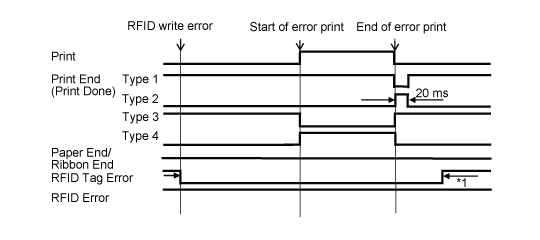

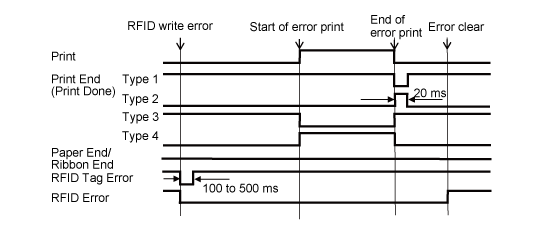

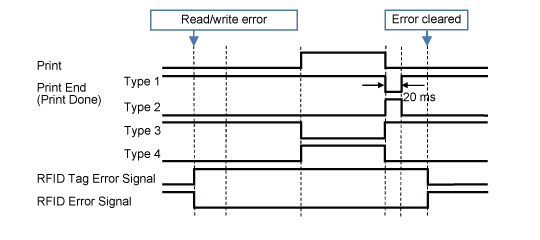

TOP > Adjusting the Product > RFID Settings (RFID Models Only) > RFID Error and Reset Timing RFID Error and Reset Timing Error Signal Output with One-shot Pulse Turns on the signal when a read/write error occurs. The signal will be turned off after 100 to 500 ms. (1) Active low (2) Active high When the reprint count reaches the specified number, the RFID tag error and RFID error are outputted at a time. The RFID error output is always a long pulse. Timing Chart of Error Signal Output with One-shot Pulse Item RFID Reprint Twice - One-shot Pulse Output Waveform Error Reprint 1st Reprint 2nd Error Signal Output with Long Pulse Turns on the signal when a read/write error occurs. The signal will be turned off if the error is cleared. (1) Active low (2) Active high When the reprint count reaches the specified number, the RFID tag error and RFID error are outputted at a time. The RFID error output is always a long pulse. Timing Chart of Error Signal Output with Long Pulse Item RFID Reprint Twice - Level Output Waveform Error Reprint 1st Reprint 2nd *1 Continues until after the error printing operation is completed. Back to top
