Timing Chart of the EXT Output Signal

TOP > Product Specifications > Interface > External Signal (EXT) Interface > Timing Chart of the EXT Output Signal

Timing Chart of the EXT Output Signal

Standard Specification

Item

Output Waveform

Basic Operation

Paper End

Ribbon End

Machine Error

Ribbon Near End/Label Near End

Online/Offline

If RFID Mode Is Enabled (RFID models only)

Item

Output Waveform

Basic Operation

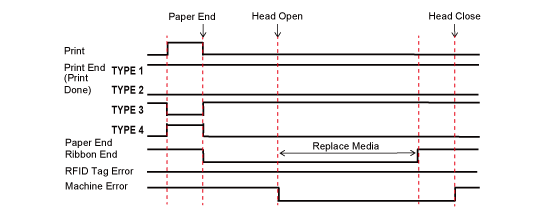

Paper End

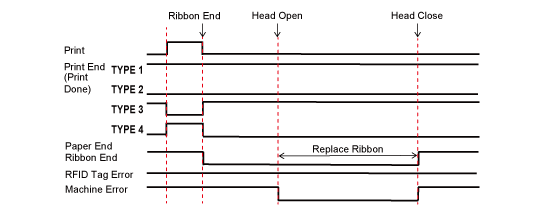

Ribbon End

Item	Output Waveform

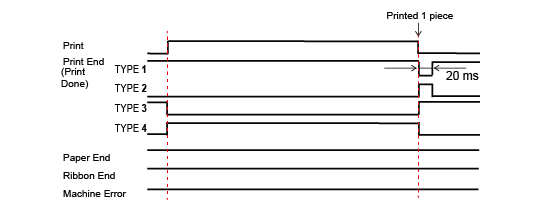

Basic Operation

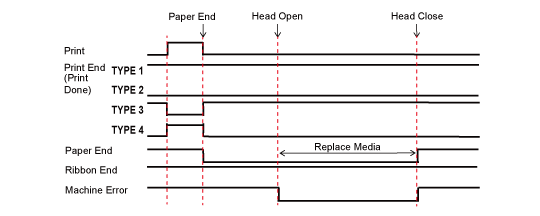

Paper End

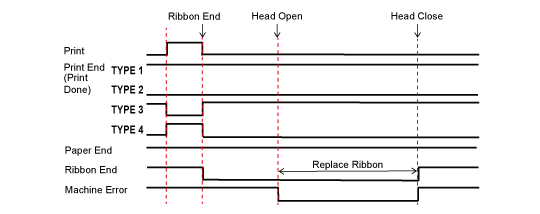

Ribbon End

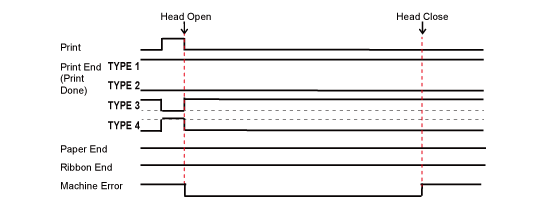

Machine Error
Ribbon Near End/Label Near End

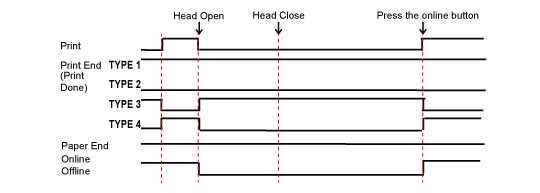

Online/Offline
