Media Sensor Type

The product adjusts the print position precisely by detecting I-marks or Gaps on the media (label) using media sensors.

The I-marks or Gaps on each type of media are as follows:

I-mark	Gap

(1) Feed direction

Set the sensor type to detect the print position according to the media to be used.

The sensor types can be set through the Startup Guide, Media Startup, and Media Profiles Registration. Alternatively, the following procedure can be used.

1.	Tap [SETTINGS] on the Home screen or Offline screen.

2.	Input the password if it is enabled.

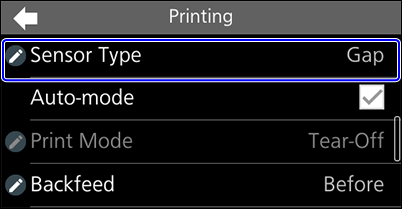

3.	Tap [Printing].

4.	Tap [Sensor Type].

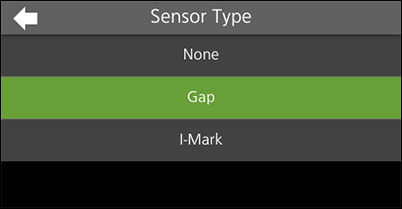

5.	Tap the sensor type to detect the print position.

[None]

Disable the media sensor.

[Gap]

Select when using the media of Gap type. Use the transmissive sensor.

[I-Mark]

Select when using the media of I-mark type. Use the reflective sensor.

---
