Usable Media

• Use our specified supply products.

　

Type

•	Media roll (Face-in wound/face-out wound)

•	Fan-fold media

•	Rolls of wristbands (face-out)

　

Size (Label Type)

•	Continuous

Item	Description
Media Length	7 to 397 mm (0.28" to 15.63")
Media Length (With Liner)	10 to 400 mm (0.39" to 15.75")
Media Width	22 to 115 mm (0.87" to 4.53")
Media Width (With Liner)	25 to 118 mm (0.98" to 4.65")

• Above media length and width are valid for die-cut labels. For media without liner like tags, refer to the value 'with liner'.

　

•

Tear-Off

Item	Description
Media Length	22 to 397 mm (0.87" to 15.63")
Media Length (With Liner)	25 to 400 mm (0.98" to 15.75")
Media Width	22 to 115 mm (0.87" to 4.53")
Media Width (With Liner)	25 to 118 mm (0.98" to 4.65")

• Above media length and width are valid for die-cut labels. For media without liner like tags, refer to the value 'with liner'.

　

•	Tear-Off (when cutter unit is installed)

Item	Description
Media Length	32 to 397 mm (1.26" to 15.63")
Media Length (With Liner)	35 to 400 mm (1.38" to 15.75")
Media Width	22 to 115 mm (0.87" to 4.53")
Media Width (With Liner)	25 to 118 mm (0.98" to 4.65")

• Above media length and width are valid for die-cut labels. For media without liner like tags, refer to the value 'with liner'.

　

•

Cutter

Item	Description
Media Length	20 to 397 mm (0.79" to 15.63")
Media Length (With Liner)	23 to 400 mm (0.91" to 15.75")
Media Width	22 to 115 mm (0.87" to 4.53")
Media Width (With Liner)	25 to 118 mm (0.98" to 4.65")

• Above media length and width are valid for die-cut labels. For media without liner like tags, refer to the value 'with liner'.

　

　

Size (Non-Adhesive Type)

•	Continuous

Item	Description
Media Length	10 to 399 mm (0.39" to 15.71")
Media Width	25 to 118 mm (0.98" to 4.65")

　

•

Tear-Off

Item	Description
Media Length	25 to 399 mm (0.98" to 15.71")
Media Width	25 to 118 mm (0.98" to 4.65")

　

•

Cutter

Item	Description
Media Length	20 to 399 mm (0.79" to 15.71")
Media Width	25 to 118 mm (0.98" to 4.65")

• The usable media sizes and print quality depends conditions such as print speed, media, media/ribbon combination, product settings and used environment. It is highly recommended to check the performance based on actual usage conditions in advance.

　

Roll Diameter (Media Roll)

•	Media roll

Maximum φ128 mm (φ5.0")

•	Rolls of wristbands

Maximum φ115 mm (φ4.5")

　

Core Diameter (Media Roll)

•	Media roll/wristband roll

φ40 mm (φ1.5”)

　

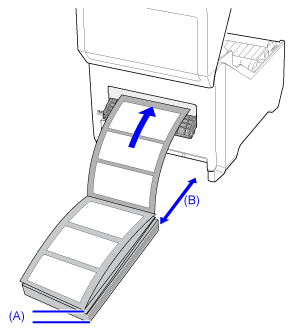

Height (Fan-fold Media)

(A) Media height (from desk): within 100 mm (3.94")

(B) Distance between the back side of the product and the media: The size of 1 sheet of labels, or more

• The height may be limited depending on where media is placed. • When drawing the media from under the desk, not from the position on the same desk which the rear side of the product is placed, place the media so as not to obstruct the printing operation.

　

Thickness

•	80 to 190 μm (0.08 to 0.19 mm (0.0031" to 0.0075"))
