Setting Value Input

This topic describes the character and number input on the setting screen.

• You can also input characters and numbers from a USB keyboard by connecting it to the product.

•	Character Input

•	Numeric Input

•	IP Address Input

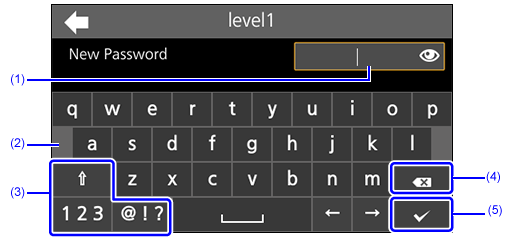

•	Character Input

(1) The text you enter is displayed in the text box.

For passwords and other secret information, tap to display what has been input.

(2) Tap the on-screen keyboard to input characters. Hold the keys to show special characters.

(3) Change the input mode.

(4) Delete the character to the left of the cursor indicated in the text box.

(5) Confirm what was input.

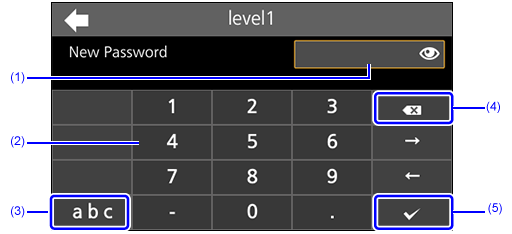

•	Numeric Input

(1) The numbers you enter are displayed in the text box.

For passwords and other secret information, tap to display what has been input.

(2) Tap the on-screen keyboard to input numbers.

(3) Change the input mode.

(4) Delete the number to the left of the cursor indicated in the text box.

(5) Confirm what was input.

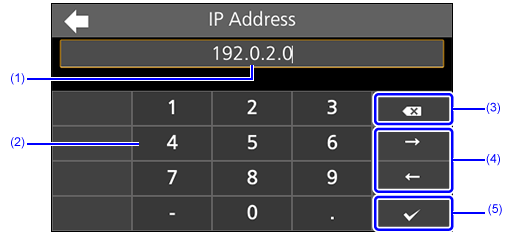

•	IP Address Input

(1) The value you enter is displayed in the text box.

(2) Tap the on-screen keyboard to input numbers. Input each octet and separate them by "." dots.

(3) Delete the number to the left of the cursor indicated in the text box.

(4) Move the cursor to the left or right.

(5) Confirm what was input.
