Operations in Online/Offline Mode

Online Mode

In Online mode, you can execute the print job.

You can switch to Online mode from the Home screen by pressing the / (Standby/Home) button.

(1) Change to Offline mode.

(2) Restart printing.

Appears when the print stop request command DLE is received and printing is stopped.

• When [Start Online] in the [Printing] menu is enabled and [AEP] in the [Standalone] menu is disabled, the Online screen appears after you power on the product. • The printer icon and the print mode text will flash until the label is dispensed.

Offline Mode

In Offline mode, the print job will stop.

You can adjust the print settings, cancel the print job or feed the media.

After you complete or cancel the print job, you can show the Settings mode.

(1) Change to Online mode.

(2) Cancel the print job.

(3) Shows the Adjustments mode when the print job is paused.

Shows the Settings mode when there are no print jobs.

(4) Feed the media.

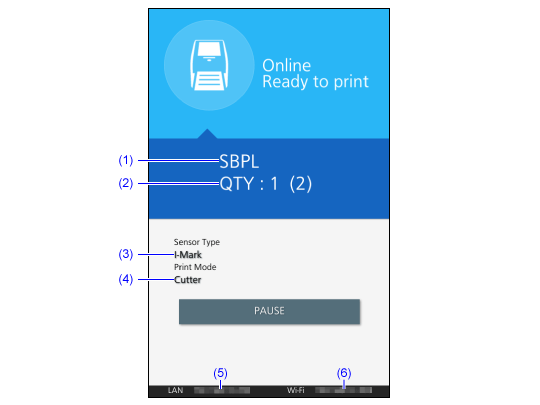

Displays Shared in Online/Offline Mode

The following information appears.

(1) Current printer language

You can set the printer language in the [Applications] > [Protocol] menu.

(2) Number of pages in the print job being processed

When the [System] > [Show Total Count] menu is enabled, the total number of pages printed from after the power was turned on is shown in the brackets.

(3) Current sensor type 1

You can set the sensor type in the [Printing] > [Sensor Type] menu.

(4) Current print mode 1

You can set the print mode in the [Printing] > [Print Mode] menu.

(5) IPv4 address for the LAN 1

Appears when connected to a LAN and the [System] > [Show IP Address] menu enabled.

(6) IPv4 address for the Wireless LAN 1

Appears when connected to a wireless LAN and the [System] > [Show IP Address] menu enabled.

¹ These functions are supported by build version 5.6.0 or later firmware.

• IP address for Wi-Fi Direct connection is not shown.

---
