Operations on the Settings Mode Screen

Select the desired screen based on the button operation and screen transition diagram in the table below.

Button Name/Button Operation	Arrow types	Screen operation
(Print/Select) button		Moves to the next selection item.
(Media feed/Enter) button		Select an item and move to the setting screen.
+		Moves to the previous selection item.
Press + for more than 2 seconds		Move to the main menu.
(Power) button		The product switches to the stopped state (offline) while the main menu is displayed. If a submenu is currently displayed, you will be taken back to the level above.

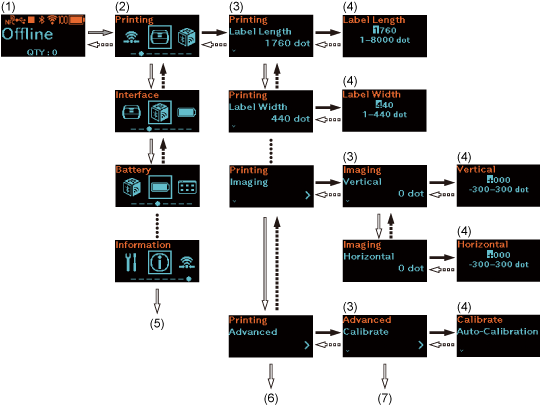

Screen Transition Diagram

(1) Stopped (Offline) screen

(2) Main menu

(3) Submenu

(4) Settings screen

(5) You will be taken back to the screen on which the print menu icon is selected.

(6) You will be taken back to the [Label Length] screen.

(7) Move to the next selection item.
