Setting Screen (Item Selection)

Select the desired item based on the button operation and screen transition diagram in the table below.

Button Name/Button Operation	Arrow types	Screen Transition
(Print/Select) button		Moves to the next selection item.
(Feed/Enter) button		Confirm the input value and move to the next submenu. If it is the last submenu of the level, you will be taken back to the submenu of the configured item.
+		Moves to the previous selection item.
(Power) button		Returns to the submenu.

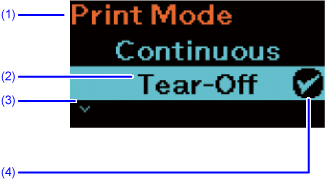

Setting screen layout

(1) Currently selected item

The currently active submenu is displayed.

(2) Cursor

Displays the selected item.

(3) V symbol

This symbol is displayed when a next selection item is available in the next level.

(4) Check mark

The check mark indicates the currently selected setting.

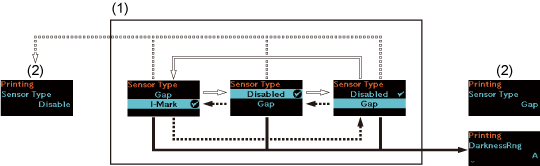

Screen Transition Diagram

(1) Setting screen

(2) Submenu
