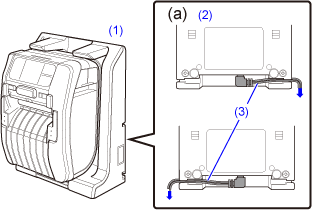

TOP > Getting Started > Using the Charging Cradle on the Wall Using the Charging Cradle on the Wall You can attach the product on the charging cradle that is mounted on the wall.When mounting the charging cradle on the wall, check the top and bottom so that it is mounted as shown in the figure below.(1) Wall surface(2) Front side(3) Cable Keep the following in mind if you are using the product while it is attached to the charging cradle:• Mount the charging cradle vertically on a flat wall surface that is not subject to impacts. An injury may result if the charging cradle or the product falls from the wall.• Allow at least 150 mm of space around the charging cradle.• To prevent injury due to dropping, use both hands when attaching or removing the product.• To prevent damage to the AC adapter, route the cable through the groove on the back of the charging cradle before mounting it on the wall (a). • The screws for mounting the charging cradle on the wall are not included in the product package.• Make sure to use screws that can withstand a load of 15 Kgf (147 N) or greater in terms of shear and extraction strengths. 4 screws are needed for the 1-bay charging cradle, and 16 for the 4-bay charging cradle, respectively.• We assume no responsibility for the product dropping due to insufficient mounting strength or your carelessness. Back to top
