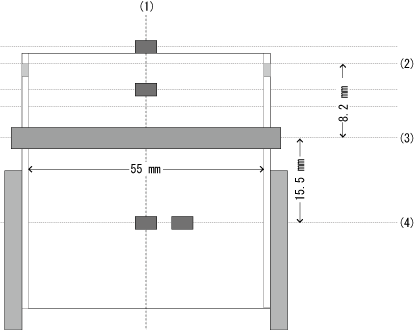

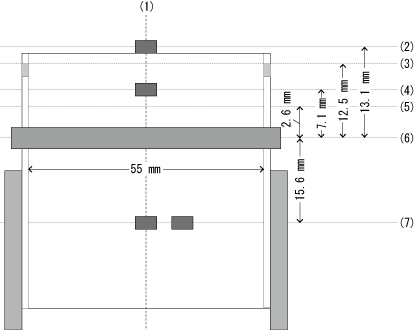

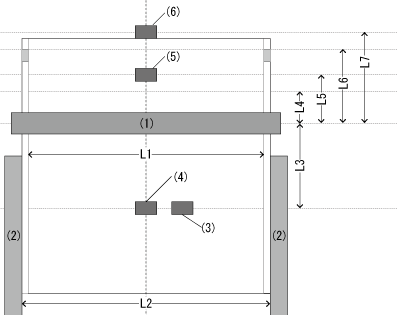

TOP > Adjusting the Product > Media Sensor Positions and Media Stop Positions Media Sensor Positions and Media Stop Positions The positions of the media sensors and the media stop positions with the various print modes are as follows: Hardware list Compatibility and model name (Yes : Equipped, - : Not equipped) PW208NX PW208mNX (1) Print head Yes Yes (2) Label guide Yes - (3) I-mark sensor (Reflective type) Yes Yes (4) Gap sensor (Transmissive type) Yes Yes (5) Dispenser sensor (Reflective type) Yes - (6) Linerless sensor (Reflective type) Yes - Sensor and label stop positions Sensors Label stop position PW208NX PW208mNX L1 Effective print width 55 mm (2.2") 55 mm (2.2") L2 Label guide width 28.4 to 58 mm (1.12 to 2.28") - L3 I-mark/Gap sensor 15.6 mm (0.61") 15.5 mm (0.61") L4 Dispenser position 2.6 mm (0.1") - L5 Dispenser sensor 7.1 mm (0.28") - L6 Tear-off/Linerless cut position 12.5 mm (0.49") 8.2 mm (0.32") L7 Linerless sensor 13.1 mm (0.52") - Media Sensor Positions and Media Stop Positions The media stop positions with the media sensor and various operation modes are as follows: PW208NX (1) Center position (2) Linerless sensor position (3) Tear-off/Linerless position (4) Dispenser sensor position (5) Dispenser position (6) Print head position (7) I-mark/Gap position PW208mNX (1) Center position (2) Tear-off/Linerless position (3) Print head position (4) I-mark/Gap position Back to top
