Items Displayed in each Display Mode

The display has the following 3 modes.

•	Normal Mode

•	Error Message Mode

•	Settings Mode

Displayed items differ depending on the mode.

Normal Mode

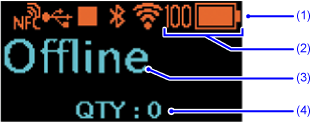

Normal view

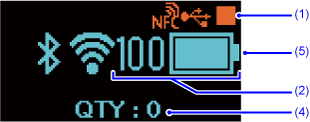

Enlarged view

(1) Shows the status icon.

(2) Shows the remaining battery level with an icon and a percentage (%).

(3) Shows the message.

(4) Shows the total count.

(5) Shows the status icon.

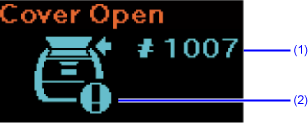

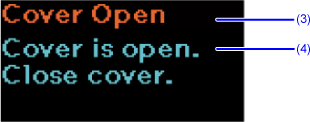

Error Message Mode

(1) An error number is displayed.

(2) Shows the status icon.

(3) A type of error is displayed.

(4) The procedures to clear an error are displayed.

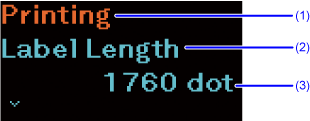

Settings Mode

(1) Shows the type of setting menu.

(2) Shows the items to be set.

(3) the current setting value.

---
