Operation 14: Dispenser Mode, Backfeed Before Printing, and without Pulse Input (Head Check Enabled)

Operation

*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next operation until the label is dispensed.

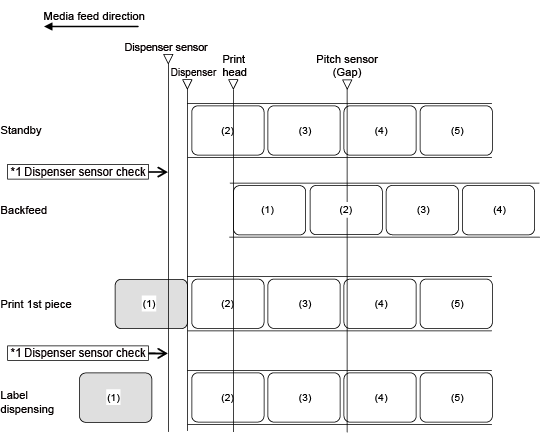

• The figure above shows the reference position when the Gap sensor is used.

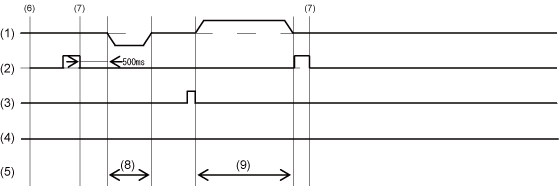

Timing chart

(1) Feed media

(2) Dispenser sensor check

(3) Battery check

(4) Head check

(5) Operation

(6) Power on

(7) Label dispenser

(8) Backfeed

(9) Print first page

(10) Print second page
