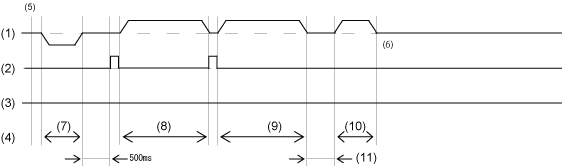

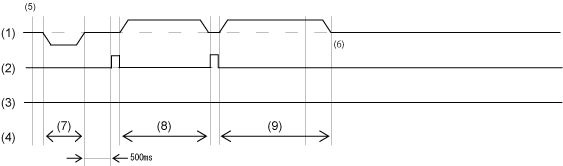

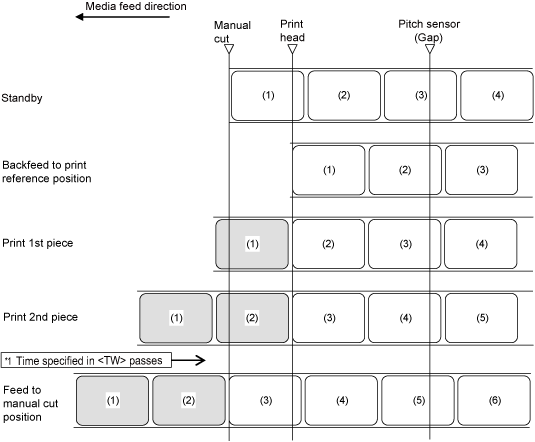

TOP > Adjusting the Product > Flow of Printing Operations > Operations in Tear-Off Mode > Operation 5: Tear-Media sensor to Enabled, the (Head Check Disabled) Operation 5: Tear-Media sensor to Enabled, the (Head Check Disabled) Operation *1 After printing, if the period specified in Option Waiting Time <TW> (initial value: 0 ms) has passed and if there is no print data remaining, the product will feed the media to the position for manual cutting. • The figure above shows the reference position when the Gap sensor is used. Timing Chart (When <TW> is 0) Timing Chart (When <TW> is 500) (1) Feed media (2) Battery check (3) Head check (4) Operation (5) Power on (6) Tear-off position (7) Backfeed (8) Print first page (9) Print second page (10) Feed (11) The time specified in <TW> elapses Back to top
