Mode Transitions for Product Startup

Select the desired screen based on the button operation and screen transition diagram in the table below.

Button Name/Button Operation	Arrow types	Screen operation
(Print/Select) button		Change the screen.
Press + for more than 2 seconds		Move to the main menu of Settings Mode or Adjustment Mode.
Press + for more than 3 seconds		The product switches to the product information screen.
(Power) button		The product switches to the printing (online) screen or stopped (offline) screen.

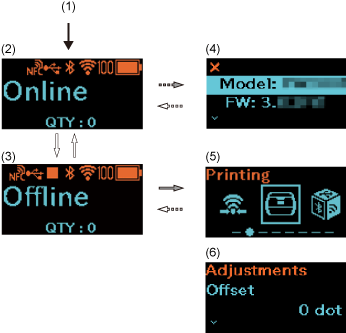

Screen transition diagram

(1) After power on, the SATO logo is displayed, printing (online) screen or stopped (offline) screen appears

Displayed screen differ depending on the settings in the [Settings] menu > [Print] menu > [Advanced] > [Start Online].

(2) Printing (online) screen

(3) Stopped (offline) screen

If no data is present when the button pushed: Switches to the settings mode.

If data is present when the button pushed: Switches to the adjustments mode.

(4) Product information screen

(5) Settings Mode

(6) Adjustment Mode

---
