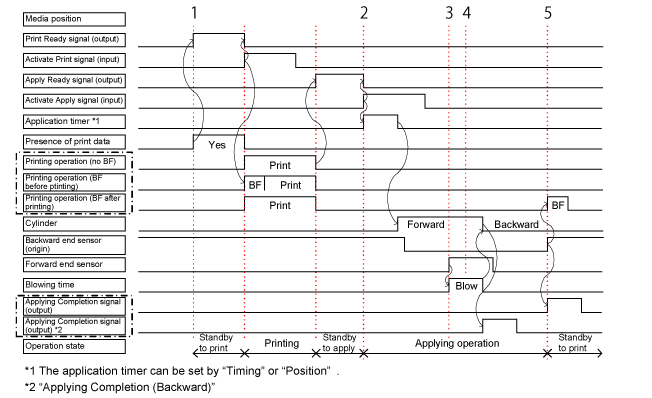

TOP > Adjusting the Product > Workflow for Application Operations > Operation 4: Cylinder Jet (CJ) Method Application (Wait Printing with Activate Print/Wait at Origin) Operation 4: Cylinder Jet (CJ) Method Application (Wait Printing with Activate Print/Wait at Origin) Operation The [Activate Print] signal (input) turns on and the label is delivered and held on the suction plate that is attached to the end of the cylinder (diagram 2). The [Activate Apply] signal (input) turns on. And then, after the application time passes, the cylinder extends to its forward end (diagram 3). When the cylinder extends to its forward end, the air blows the label on (diagram 4). After the blowing time passes, the cylinder returns (diagram 5). CJ method: Wait printing • After blowing the label on, and after the cylinder returns, the backward end sensor turns on, and then the product waits 100 ms until printing starts. Back to top
