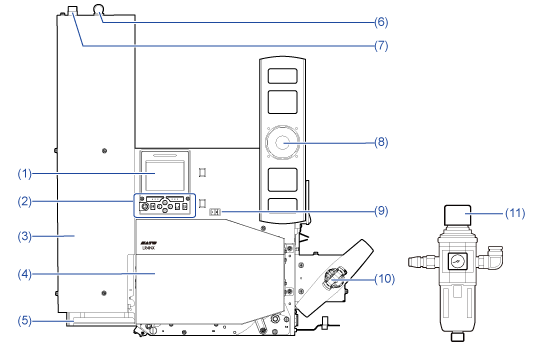

Front View
(1) Display
(2) Operator panel
(3) Cylinder cover
(4) Front cover
(5) Label suction plate
Attached to the end of the cylinder. Sucks the label and then applies it to the package.
(6) Air regulator for blowing labels
Adjusts the pressure of the air that blows the labels, which have been sucked onto the suction plate, onto the package.

•
Water and oil may collect in the air if the factory's pipes are very long or if the air passes through a lubricator (lubricator for the compressed air). Never connect the air directly, if after several days water collects in the regulator, or oil seeps out of the air equipment and leaks out of the outlet.
(7) Hand valve
Valve to open and close the air supply for use by components other than the label blower.
(8) Label feeder
Feeds media to the product.
(9) Power switch
(10) Liner winder
(11) Air regulator
Adjusts the pressure of the air that is supplied to the product.
