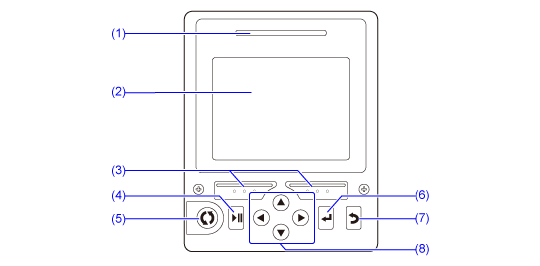

Parts Identification for the Operator Panel

(1) LED indicator

(2) Display

(3) Soft buttons

The functions change depending on the screen. The functions of the buttons are indicated on the bottom of the screen.

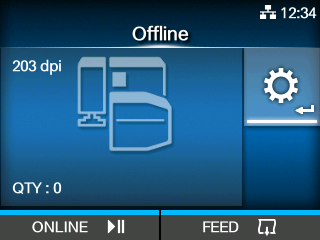

Example 1: In Offline mode

left soft button: ONLINE, right soft button: FEED

　

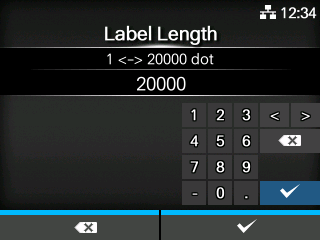

Example 2: The numerical value input screen of the Settings menu

left soft button: Delete one character, right soft button: Save

(4) Line button

Toggle between Online/Offline mode or playback/pause the video.

(5) Reset button

Press this once after an error occurs to stop the warning lamp's buzzer. After removing the cause of the error, press it again to clear the error.

• If you have selected [None] in the [Applications] > [Applicator] > [Warning Lamp] > [Select Type] menu, the warning lamp's buzzer does not sound when an error occurs. After removing the cause of the error, press the reset button once to clear the error.

(6) Enter button

Confirm the selected item or setting value.

(7) Back button

Returns to the previous screen.

(8) /// Arrow buttons

Navigate the selection in the screen menu.
