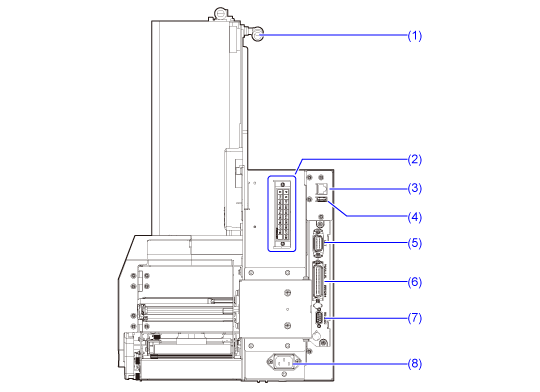

TOP > Basic Information > Parts Identification > Parts Identification for the Product > Rear View Rear View (1) Air supply inlet Connect the air for blowing labels. (2) Terminal for external input/output signals This is the terminal for connecting external input/output signals. (3) LAN connector To connect the product to a network using the LAN interface. (4) USB connector (Type A) You can use a USB memory to store the product's settings and other information. Also, you can connect other USB devices, such as a keyboard. The communication of print data between the product and computers through the USB interface is not supported. • Be sure to perform a virus check on the USB memory before connecting it to the product. SATO Corporation shall not be held responsible for any product malfunctions caused by a virus spread via USB memory. (5) Warning lamp connector This connector is for the warning lamp. (6) IEEE1284 connector Use this to connect the product to the computer using the IEEE1284 interface. (7) RS-232C connector Use this to connect the product to the computer using the RS-232C serial interface. (8) AC input terminal Supplies power to the product through the connected power cord. Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240 V, 50 to 60 Hz. Back to top
