Timing Chart of the External Output Signal

Item	Output Waveform

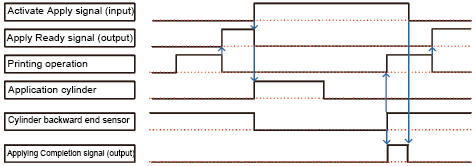

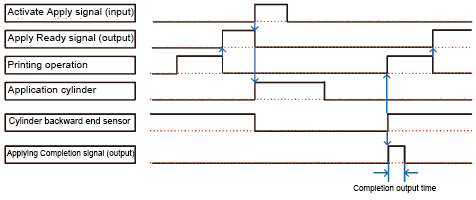

Applying Completion	Output when the product returns to origin after an application operation. 　 Completion Output Time: For 200 ms/300 ms/500 ms/1000 ms Completion Output Time: If Activation Signal Is Off   • You can set the completion output time to [Activation Signal Off], [200ms], [300ms], [500ms], or [1000ms]. • For [Activation Signal Off], signal is output until the [Activate Apply] signal or the [Activate Apply (Level)] signal turns off. ([Activation Signal Off] is used if the [Activate Apply] signal or the [Activate Apply (Level)] and the [Applying Completion] signal or the [Applying Completion (Backward)] do a handshake.) • If the completion output time is set to [Activation Signal Off], turn off the [Activate Apply] signal or the [Activate Apply (Level)] signal after the [Applying Completion] signal turns on. (A 200-ms pulse is output if the [Activate Apply] signal or the [Activate Apply (Level)] signal has already turned off when application is complete.)
All Error Signal	Output when various errors occur.   • After the cause of an error is cleared, output continues until reset is done.
Media Remaining Amount	Output when the amount of labels or ribbon that is remaining is low.   • Output until the labels or ribbon are replaced.

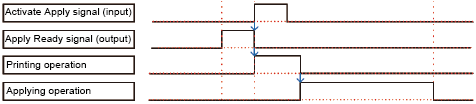

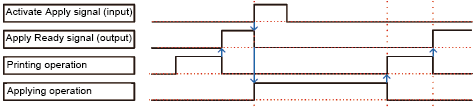

Apply Ready	Output when it is possible to input the [Activate Apply] signal. 　 Delivery Method: For Print and Wait Delivery Method: For Wait Printing   • Signal is output until the the [Activate Apply] signal, [Activate Apply (Level)] signal or the [Activate Test] signal is input or until an error occurs. • The conditions for this signal include the package mask timing (calculated from the values set for [Conveyor Speed] and [Product Length]). (If the package mask time is longer than one cycle of the product, this signal is output after the package mask time passes during the next cycle.) • When [Enabled] is selected in the [Applications] > [Applicator] > [Compatible] > [LR4800RV Compatible Mode] > [Apply Ready Signal] menu, the [Apply Ready] signal for wait printing operation is output ON regardless of the presence of print data. Also, with this setting, the [Apply ready] signal is turned OFF from the time the [Activate Apply (Level)] signal input is received until the attaching process is completed.
