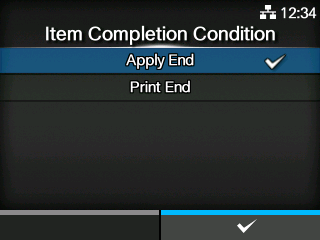

[Item Completion Condition]

Set the completion reference for print data.

The options are as follows:

Apply End

The completion reference for print data is when application finishes.

If an error occurs during the label printing and application operations, then labels are reissued with the content from that operation until the label printing and application operations are completed after the error is cleared.

Print End

The completion reference for print data is when printing finishes.

If an error occurs during the label printing operation, then labels are reissued with the content from that operation until the label printing operation is completed after the error is cleared. If an error occurs during the label application operations, then a normal label is considered to have been printed and the next label is printed after the error is cleared.

• If [StatusL] is set in [Flow Control] for any one of network/IEEE1284/RS-232C in the [Interface] menu, then it is fixed at [Apply End] and the setting cannot be changed. • To set [Item Completion Condition] to [Print End], change all the [Flow Control] settings of network/IEEE1284/RS-232C in the [Interface] menu to the status other than [StatusL], and then set [Item Completion Condition] to [Print End]. This setting change is necessary to set [Print End], which is the item completion condition of Status3, etc. • If the power is turned off during an operation, the system initializes so reissue is not done.

---

Related Topics

[Interface] Menu
