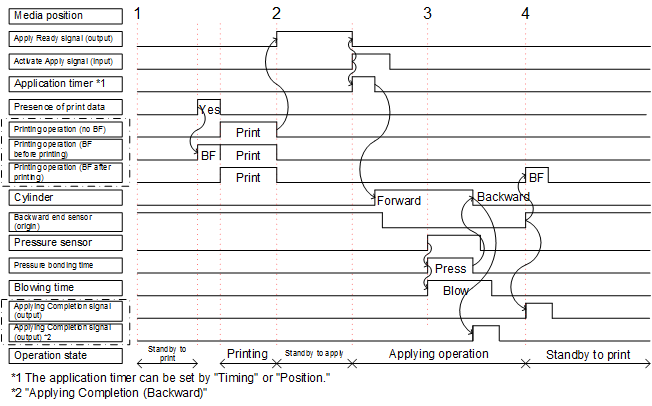

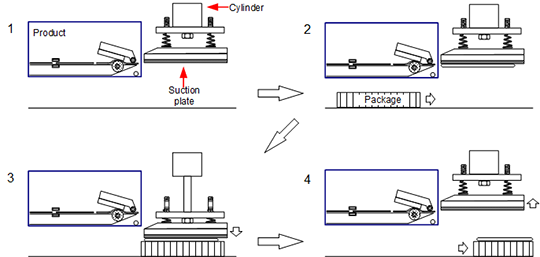

TOP > Adjusting the Product > Workflow for Application Operations > Operation 5: Pressure Jet (PJ) Method Application (Print and Wait) Operation 5: Pressure Jet (PJ) Method Application (Print and Wait) Operation The label that is delivered is held on the suction plate that is attached to the end of the cylinder (diagram 2). When the package stops, the [Activate Apply] signal (input) turns on, and after the application time passes, the cylinder extends and presses (blows) the label on (diagram 3). After the pressure bonding time passes, the cylinder returns (diagram 4). PJ method: Print and wait • After pressing the label on, and after the cylinder returns, the backward end sensor turns on, and then the product waits 200 ms until printing starts. Back to top
